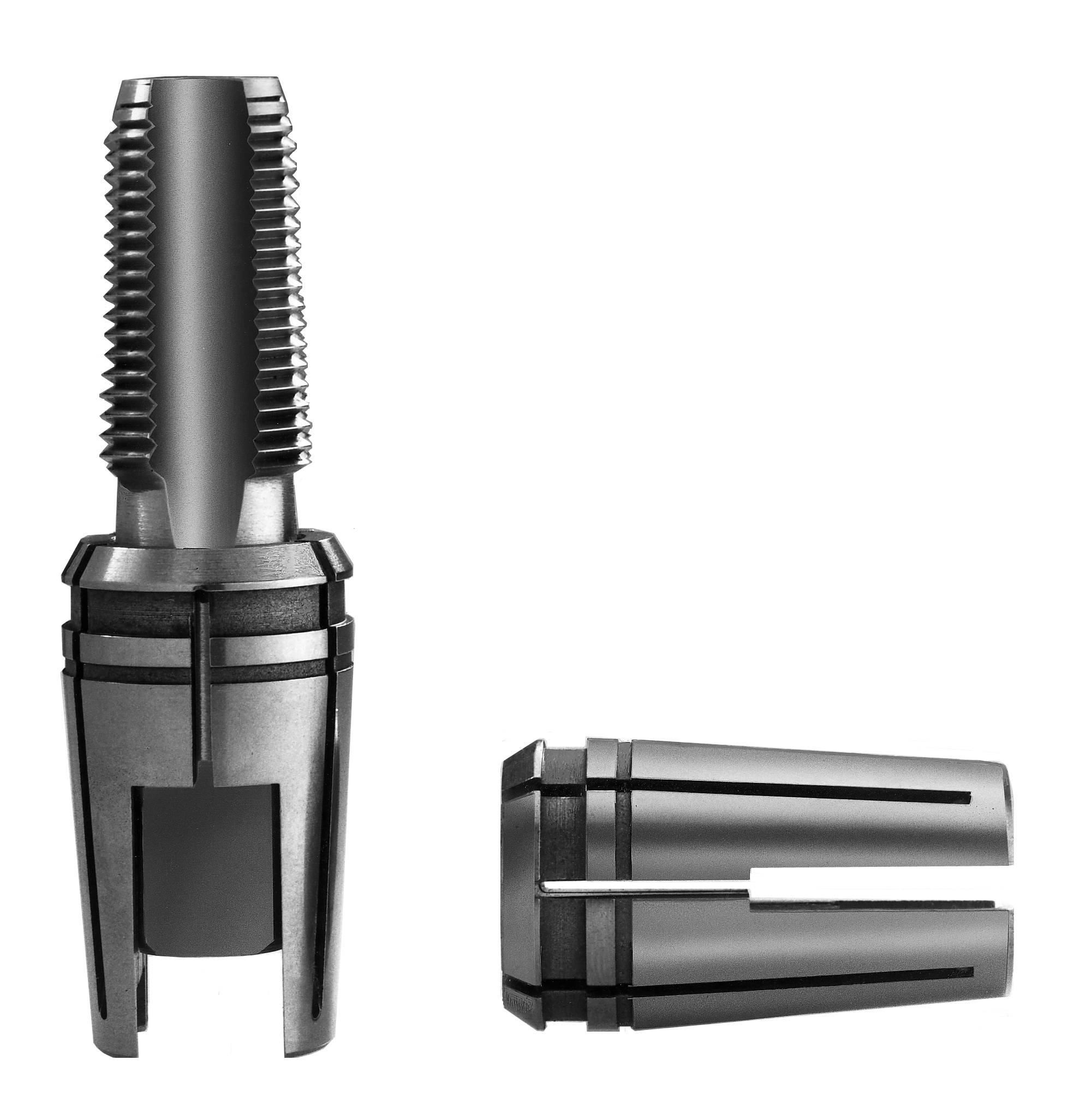

Single Angle Tap Collets TG Style

Versatile: The TGST tap collets have the same overall dimensions as other Erickson TG style collets. The same collet chuck used to hold drills, reamers, endmills, etc. can now be used to hold taps as well.
Accurate: High performance TGST tap collets are manufactured to the same high quality standards as other Erickson collets. When assembled properly in an Erickson collet chuck, TGST tap collets are guaranteed to easily allow tapping of Class 3B threads.
Tremendous Grip: When properly installed in an Erickson collet chuck, the TGST tap collet prevents axial or radial slippage of the tap or collet from the effects of torque.
Positive Drive: TGST tap collets grip on the tap square to positively drive the tap.
Economical Price: Compared to other solid tapping systems, the TGST tap collets provide high performance at a low cost.


NOTE: AREAS SHADED IN WHITE ARE PRICED ON APPLICATION.

ALSO AVAILABLE FOR METRIC TAPS
Note: For best performance from your TGST collets, be sure the collet chuck cavity,
collet and locknut are clean and free of nicks, burrs, and other impediments.
Use a light machine oil to lubricate the chuck cavity and collet. Tighten the 75TG
locknut to 100 ft./lbs. and the 100TG locknut to 150 ft./lbs. of tightening torque.
